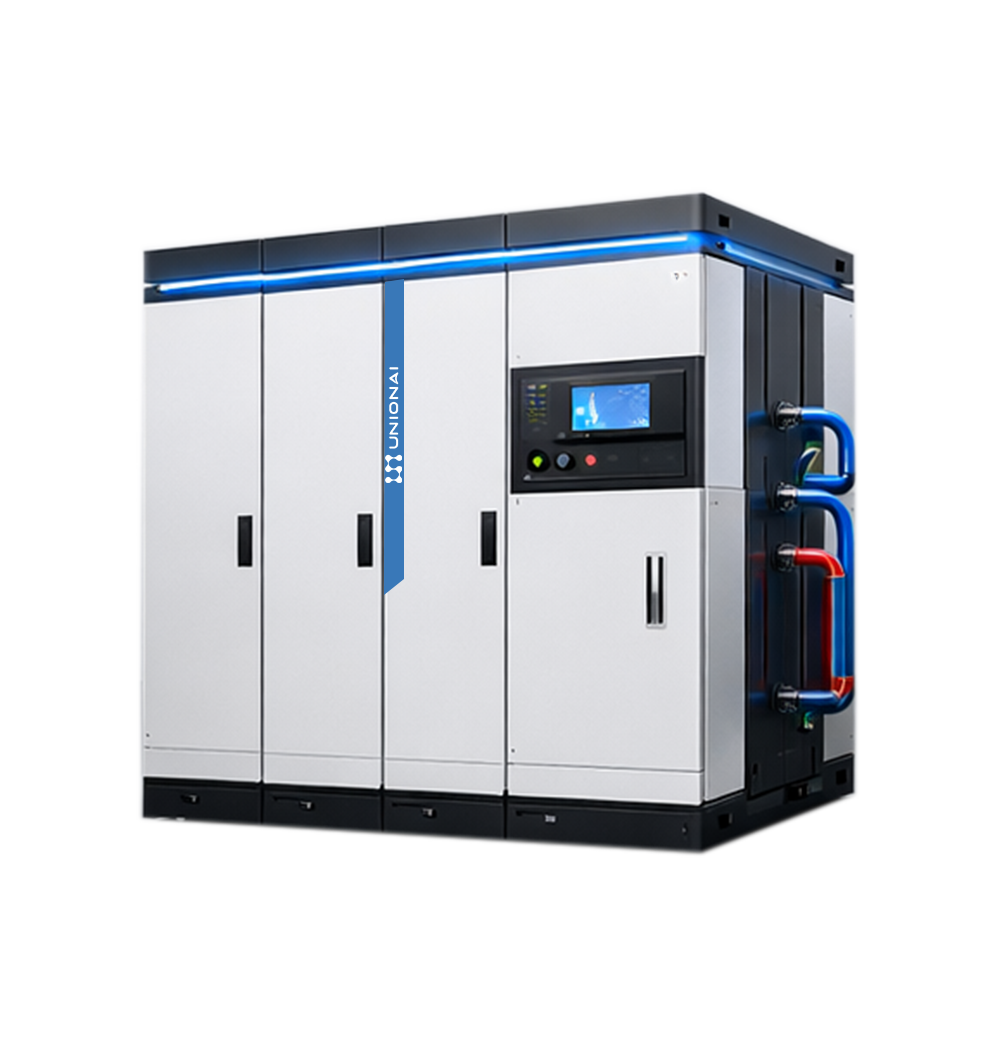

10kV SST
The 10kV SST (Solid State Transformer) is designed for next-generation AI data centers and dense compute infrastructure. Starting from 10kV medium-voltage access, it enables an efficient and intelligent front-end power architecture for the 800V DC platform, working together with downstream BBU, DC-DC, and PDU modules to support end-to-end power deployment from utility access to rack-level distribution.
Applications
HPC
Servers
Networking
Key Advantages
01
Supports 10kV medium-voltage grid access, helping simplify traditional multi-stage power conversion paths and enabling a shorter, more efficient front-end power architecture for AI data centers.
02
Acts as the front-end energy platform for an 800V DC power architecture, enabling unified integration with downstream BBU, DC-DC, and PDU modules for next-generation AI rack-level power systems.
03
Compared with conventional transformer and distribution schemes, SST delivers faster dynamic response and more precise energy control through a solid-state power electronics architecture, making it ideal for AI workloads with rapidly changing loads.
04
Aligned with the high-density direction of the existing product family, the 10kV SST can serve as a highly integrated power conversion node that helps reduce front-end power footprint and extend the space-efficiency advantages of the downstream high-density power platform.
05
Designed for modular deployment across different AI data center power scales, it can work together with PSU, BBU, PDU, and DC-DC modules to support capacity expansion, hierarchical distribution, and backup power integration.
06
For website positioning, the SST should be presented as a core power node with advanced monitoring, communication, and energy management capabilities, consistent with the existing product family’s support for PMBus, MODBUS/CAN, and optional PMC monitoring modules.
Specifications
| Parameter | SST-3300(3.3MW) | SST-5000(5MW) | SST-10000(10MW) |
|---|---|---|---|
| Rated Power | 3.3MW | 5.0MW | 10.0MW |
| MVAC | 10kV / 35kV (±10%) | 10kV / 35kV (±10%) | 35kV (±10%) |
| Output Port Options (Customizable) | 800V DC | 800V DC | 800V DC |
| Core Semiconductor Devices | 1.7 kV High-Voltage SiC MOSFET | 1.7 kV High-Voltage SiC MOSFET | 1.7 kV High-Voltage SiC MOSFET |
| Topology | Cascaded H-Bridge (CHB) Rectification + Dual Active Bridge (DAB) Isolated DC-DC Conversion | Cascaded H-Bridge (CHB) Rectification + Dual Active Bridge (DAB) Isolated DC-DC Conversion | Cascaded H-Bridge (CHB) Rectification + Dual Active Bridge (DAB) Isolated DC-DC Conversion |
| Typical Switching Frequency | 40 kHz - 50 kHz | 40 kHz - 50 kHz | 40 kHz - 50 kHz |
| Max. System Efficiency | ≥ 98.2% | ≥ 98.5% | ≥ 98.5% |
| Power Factor (Grid Side) | > 0.99 (Supports Continuous Adjustment from -1.0 to +1.0) | > 0.99 (Supports Continuous Adjustment from -1.0 to +1.0) | > 0.99 (Supports Continuous Adjustment from -1.0 to +1.0) |
| THDi | < 3% | < 3% | < 3% |
| Cooling | Closed-Loop Water Cooling (Deionized Water) | Closed-Loop Water Cooling / Water-to-Air Heat Exchange | Closed-Loop Liquid Cooling (Integrated High-Efficiency Chiller) |
| Protection Rating | IP54 / NEMA 3R (Outdoor Type) | IP54 (Outdoor / Containerized Type) | IP54 (Prefabricated Container Type) |
| Communication & Smart Interfaces | Modbus TCP, IEC 61850 | Modbus TCP, IEC 61850 | Modbus TCP, IEC 61850 |
