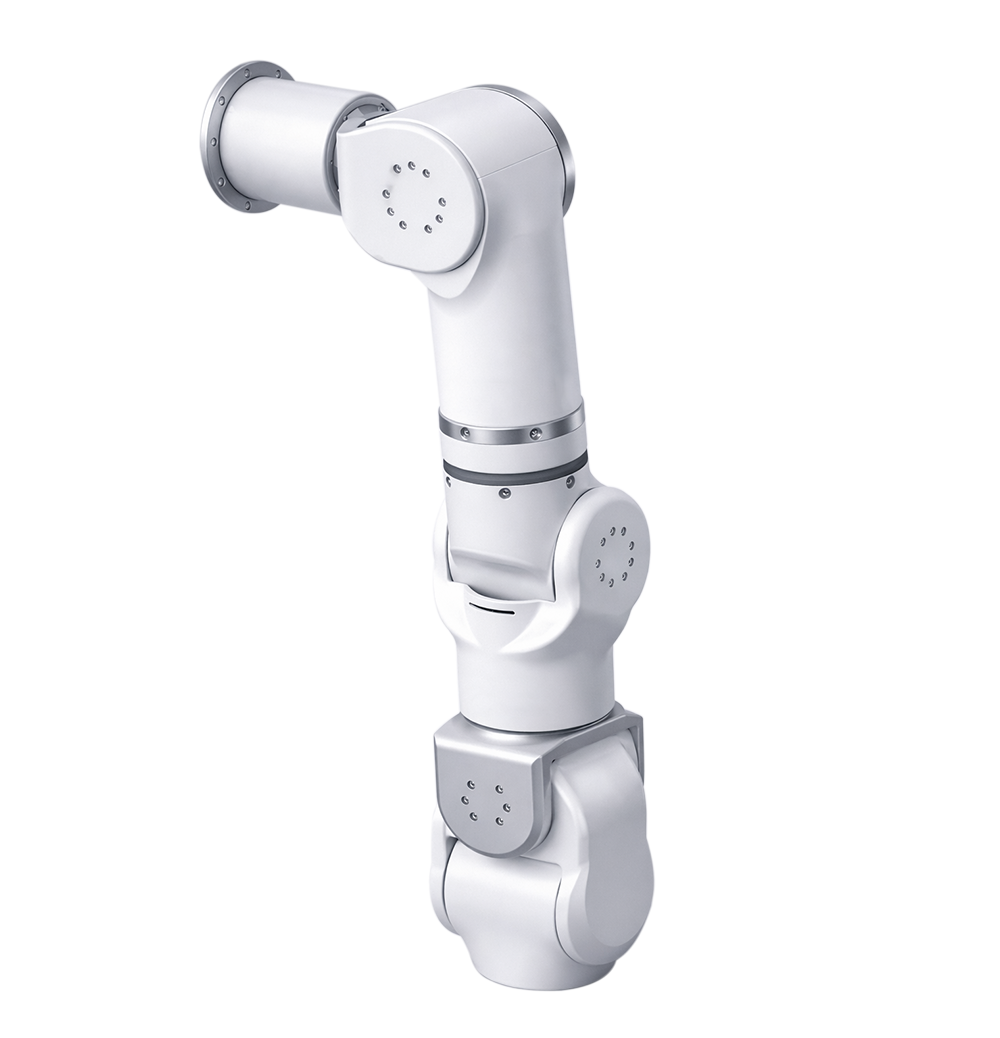

Robotic Open Arm
This series of bionic robotic arms features an advanced AI-driven architecture for high-precision, complex industrial applications. With 7 degrees of freedom, it supports human-like motion and complex manipulation tasks across manufacturing, smart logistics, medical assistance, aerospace, and special operations.
Powered by high-precision integrated cycloidal joint modules and the NVIDIA Jetson Orin/Thor AI platform, the system delivers strong perception, decision-making, and control capabilities, while supporting flexible configuration and secondary development.
Applications

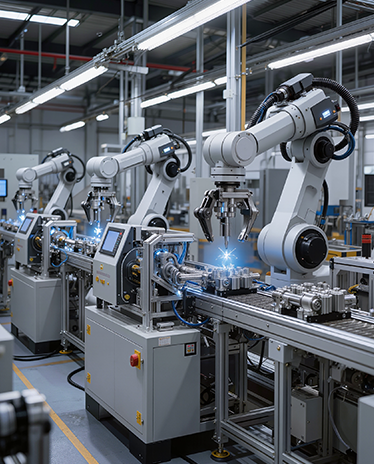

Industrial Automation

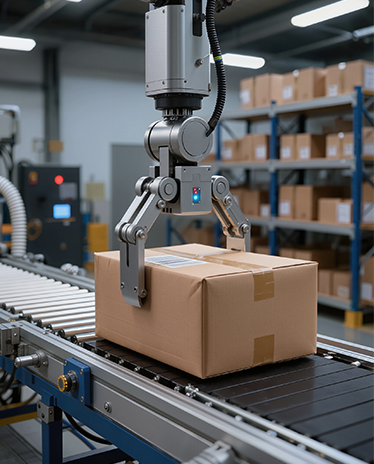

Smart Logistics & Sorting
Special Operations
Key Advantages
01
Built on an AI-native architecture, the system supports multimodal model integration and enables fused vision, force, and motion control for complex task execution.
02
With a 7-DOF biomimetic design, it delivers human-like motion, greater flexibility, and reliable operation in complex and confined spaces.
03
High-precision cycloidal integrated joints provide high rigidity, low backlash, and stable performance for heavy-duty, long-duration operation.
04
Powered by NVIDIA Jetson Orin / Thor, it offers strong edge AI computing capability for real-time decision-making and advanced algorithm execution.
05
Its modular and reconfigurable design supports different payload options while enabling fast deployment and seamless system integration.
06
Featuring EtherCAT communication, SDK/API support, and compatibility with mainstream automation systems, it is open, scalable, and easy to integrate.
Specifications
| Parameter | S3 | S5 | S8 | S15 | S25 |
|---|---|---|---|---|---|
| Payload | 3kg | 5kg | 8kg | 15kg | 25kg |
| Degrees of Freedom | 7DOF | 7DOF | 7DOF | 7DOF | 7DOF |
| Max Reach | 700mm | 800mm | 900mm | 1100mm | 1300mm |
| Repeatability | ±0.02mm | ±0.02mm | ±0.02mm | ±0.03mm | ±0.05mm |
| Max TCP Speed | 2.0m/s | 2.0m/s | 1.8m/s | 1.5m/s | 1.2 m/s |
| Joint Torque Range | 15–75Nm | 30–150Nm | 75–300Nm | 150–500Nm | 300–500Nm |
| Controller | Jetson Orin | Jetson Orin | Jetson Orin | Orin / Thor | Thor |
| Communication | EtherCAT | EtherCAT | EtherCAT | EtherCAT | EtherCAT |
| Protection Level | IP54 | IP54 | IP54 | IP54 | IP54 (IP65 Optional) |
| Typical Power | 0.5kW | 0.8kW | 1.2kW | 2.0kW | 3.5kW |
| Mounting Options | Table / Inverted | Table / Inverted | Table / Inverted | Table / Floor | Floor |
| Recommended Applications | Precision Tasks | Electronics | General Automation | Industrial Handling | Heavy-duty / Special Ops |
